Motor Protector SN-1


Utiliti Controls builds the 3.5mm motor protector to meet almost any requirement of protection in a wide range of small motors, small transformers, solenoids, etc. This compact motor protector is the best solution to protect the wide variety of motors used in industrial and domestic appliances against locked rotor and overload situations. It contains the calibrated disc carrying a silver contact. The fixed contact is placed on the opposite side, separated from the terminal by an insulator. In single–phase motors, SN-1 can be mounted directly in the main circuit to serve as an on–or in–winding protector for motors used in industrial and domestic appliances against locked rotor and overload situations. This motor protector consists of a PPS housing that holds and protects the inner components.

Motor Protector sn-1
Applications
- Electric Motors
- Transformers
- Solenoids
- Rechargeable Battery Packs
- Printed Circuit Boards
- Fluorescent Lighting Ballasts
- Wound Components


Features
- Compact size
- High current capacity
- Hermetic Surface
- Sealed PPS case suitable for impregnation
- Waterproof electric insulation

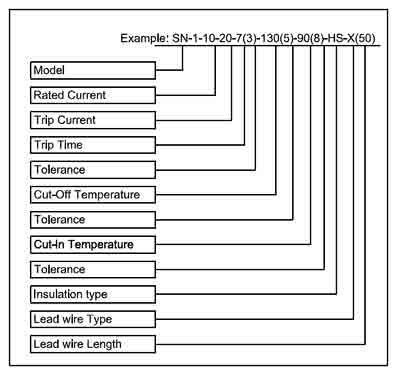

Selection Code Chart and Specifications
motor protector exporters, motor protector wholesale

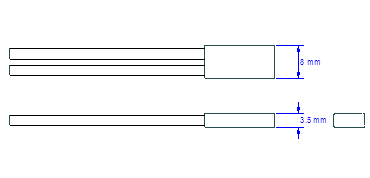

Model
motor protector exporters, motor protector wholesale

Operation
NC NO
Open on Rise Close on Rise

Current Rating
Code Contact Rating Cycles
2 2A, 230V AC 1,00,000
8 8A, 230V AC 1,00,000
16 16A, 230V AC 1,00,000

Top Temperature
Temperature Range 50°C to 110°C 111°C to 160°C
Differential 10°C to 30°C 15°c to 40°C

Top Temperature Tolerance
Code 5 8 10
Tolerance ±5°C ±8°C ±10°C

Bottom Temperature

Bottom Temperature Tolerance
Temperature Range 30°C to 120°C
Code 10 15 20
Tolerance ±10°C ±15°C ±20°C

Insulation Type
PPS N
Poly Phenyl Sulphide Nylon 66

Lead Wire Type
X T S P
XLPE PTFE Silicon PVC

Lead Wire Length
50 70 100 200
50 mm 70 mm 100 mm 200 mm
