Thermal Cutout SN-6


SN-6 Series safety cut-out is designed to offer the ultimate thermal overload protection for a wide variety of domestic appliance manufacturers. SN-6 is capable of carrying resistive loads of 10 Amps at 230 Volts AC. The SN-6 is the perfect cut-out to provide rapid thermal response so essential for safety applications. The set temperature range is from 50°C to 160°C with a ±10°C tolerance.


Thermal Cutout
Applications
- Electric Room Heaters
- Hair Dryers
- Hand Dryers
- Hair Curlers

Features
- Open design
- Temperature control and overheating protection
- High thermal sensitivity
- Compact size
- Long contact life

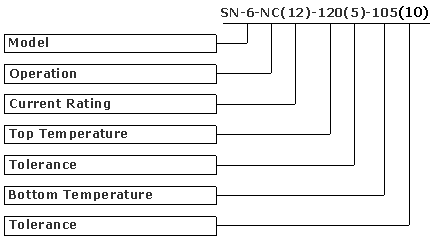

Selection Code Chart and Specifications
thermal cutout from india, thermal cutout exporters

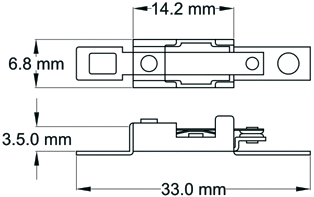

Model
thermal cutout from india, thermal cutout exporters

Operation
NC
Open on Rise

Current Rating
Code Contact Rating Cycles
12 12A, 230V AC 10,000

Top Temperature
Temperature Range 50°C to 110°C 111°C to 160°C
Differential 30°C 40°C

Top Temperature Tolerance
Code 5 10
Tolerance ±5°C ±10°C

Bottom Temperature
Temperature Range 40°C to 80°C 81°C to 120°C

Bottom Temperature Tolerance
Code 10 20
Tolerance ±10°C ±20°C
