Automatic Reset Thermostat N-8


A snap-acting bimetal disc serves as the actuating element in these rugged, precision thermostats. As the temperature reaches the tamper-proof predetermined set point, the disc snaps to provide rapid, positive contact action minimizing radio frequency interference and ensuring high reliability. These thermostats are individually calibrated and tested to meet both thermal and electrical characteristics. Resistance to vibration and harsh environments are additional features. Many terminations and mounting assemblies are available to permit great flexibility in installation.


Automatic Reset Thermostat N-8
Applications
- Rice Cookers - Dish Dryers
- Food Warmers - Fire Apparatus
- Water Heaters - Washing Machines
- Vacuum Cleaners - Dehumidifiers
- Coffee Makers - Room Heaters
- Microwave Ovens - Other Small Appliances

Features
- As per international design
- High current capacity
- Temperature control and overheating protection
- High thermal sensitivity
- Variety of mounting brackets and terminals available
- Long contact life

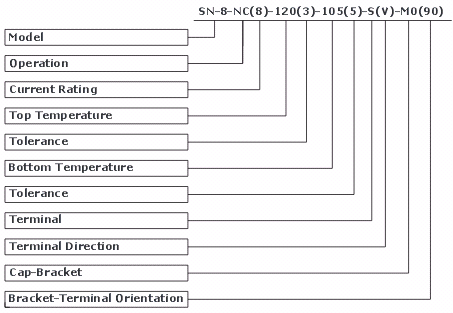

Selection Code Chart and Specifications
Automatic Reset Thermostat

Model
Automatic Reset Thermostat

Operation
NC NO
Open on Rise Close on Rise

Current Rating
Code Contact Rating Cycles
2 2A, 230VAC 1,00,000
8 8A, 230VAC 1,00,000
16 16A, 230 VAC 1,00,000

Top Temperature
Temperature Range 0°C to 100°C 101°C to 150°C 151°C to 230°C
Differential 10°C 15°C 30°C

Top Temperature Tolerance
Code 3 5 8
Tolerance ±3°C ±5°C ±8°C

Bottom Temperature
Temperature Range -20°C to 200°C

Bottom Temperature Tolerance
Code 5 10 15
Tolerance ±5°C ±10°C ±15°C

Terminal
S - 3/16” L - 1/4 ”
Terminal

Terminal

Terminal Direction
F V
F V

Cap-Bracket Type
M0 M2
cap bracket type cap bracket type

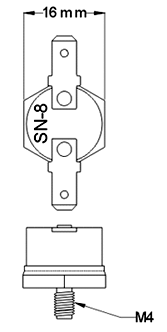

M4 M6
M4 M6
M7
M7

Bracket-Terminal Orientation
90 45
Bracket Terminal Orientation Bracket Terminal Orientation
135 180
Bracket Terminal Orientation Bracket Terminal Orientation
