DC Motor Protector SN-25


The SN-25 Series is a high current DC motor protector which delivers the benefit of locked rotor and overload protection in a robust integrated package. A broad range of design and mounting options enable this device to be custom engineered to meet your needs.


dc motor protector sn-25

Applications
- Over current and temperature protection in DC Motors.
- Refrigerator Compressors
- DC blowers
- Engine Cooling fan motors
- Pump Motor

Features
- Tin plated steel base and tab.
- Available in covered and uncovered versions
- Designed to trip time or temperature specifications.
- Multiple bimetallic resistivities available.

Specifications
Nominal Operating Voltage 12-48 Volts DC
Typical voltage drop at operating current 200 mV max
Cut-off temperature range 60ºC to 166ºC
Operating Trip Current Range 10-125 Amps

The SN-25 Series has been designed to offer protection for a wide range of 12 volt to 48 volt applications in a minimum package size. The SN-25 Series is suitable for both intermittent and continuous rated motors. The SN-25 is also designed for manual switching operations. The SN-25 is physically small and has unique 'snap action' bimetal disc, ensuring a positive make and break switching action for enhanced contact life.

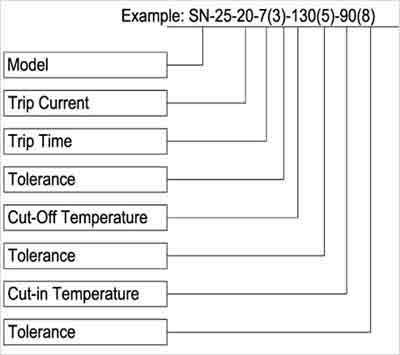

Selection Code Chart
automatic thermostat manufacturers, automatic reset thermostat exporters

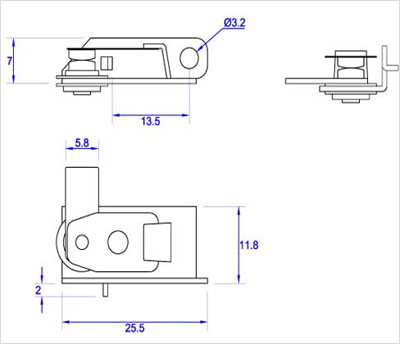

Line Diagram
automatic thermostat manufacturers, automatic reset thermostat exporters

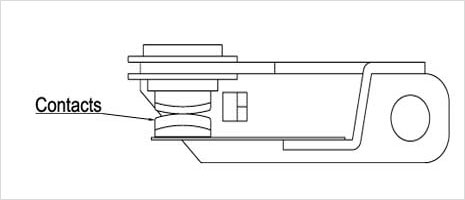

Sectional view
automatic thermostat manufacturers, automatic reset thermostat exporters

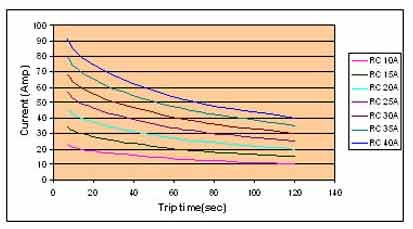

Graph
automatic thermostat manufacturers, automatic reset thermostat exporters

The Current VS Trip Time graph shows that whenever there is a locked rotor condition and the current exceeds 2.5 times the rated current the circuit is opened by SN-25 within 4-7sec without harming the motor.
