Home » Snap Disc Thermostat

Call Us : 08045350450

SNAP DISC THERMOSTAT

Snap Disc Thermostat is a bimetallic mechanical thermostat. It functions by thermal expansion and contraction of a bimetal disc that snaps from a convex to a concave shape at a preset temperature. When the disc snaps, it either completes or interrupts a circuit. The most common application for a snap disc thermostat is as a temperature controller. It is also used as a thermal overload protector (TOP) to protect against overheating.

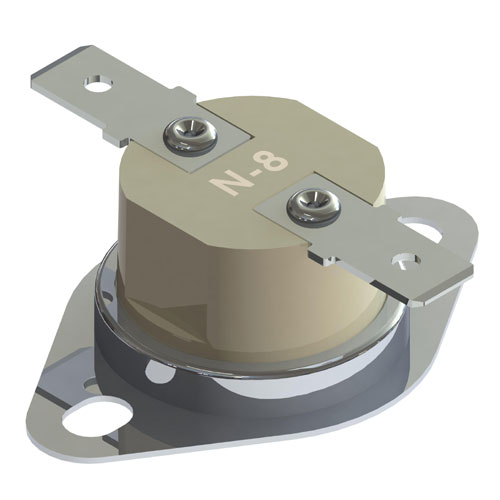

SN-8 (N-8) Snap Disc Thermostat
SN-8 (N-8)
Snap Disc Thermostat
SN-8 (N-8) Snap Disc Thermostat
Model : SN-8 (N-8)
Ambient Temperature Range : 0°c ~ 230°c
N-8, 1/2" bimetal disc thermostat is designed as per internationally accepted dimensions. These thermostats are individually calibrated and tested to meet both thermal and electrical characteristics. Resistance to vibration and harsh environments are additional features. The contacts are made of silver alloy for long life. The snap action of the bimetal disc provides high speed contact separation resulting in excellent life cycle characteristics at electrical loads, up to 15 Amps at 120VAC or 8 Amps at 250VAC (100,000 cycles), 16 Amps at 250VAC (30,000 cycles) and 24 Amps at 250VAC (10 000 cycle).

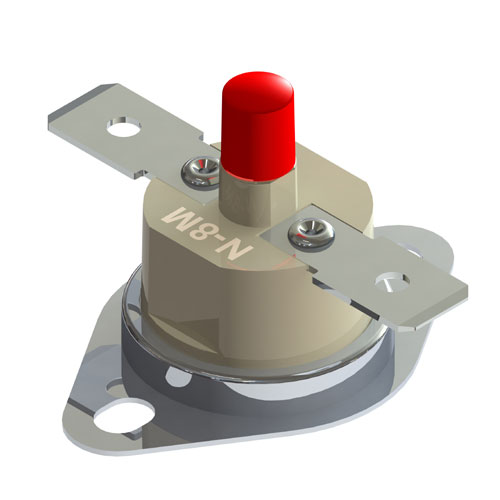

Manual Reset Thermostat
Manual Reset Thermostat N-8M
Manual Reset Thermostat N-8M
Model : N-8M
Ambient Temperature Range : 0°C ~ 230°C
N-8M is similar to N-8 with a reset button. This thermostat provides excellent reliability to commercial appliances such as boiler, vending machine, photo copiers.

Thermal Cutout
Thermal Cutout SN-6
Thermal Cutout SN-6
Model : SN-6
Ambient Temperature Range : 50°C ~ 160°C
SN-6 provides fast response due to its exposed sensing surface. Its Open design and high current capacity makes it an excellent thermal cut-out for hair dryer, hand dryer.

SN-9 (N-9) Miniature Thermostat
SN-9 (N-9) Miniature Thermostat
SN-9 (N-9) Miniature Thermostat
Model : SN-9 (N-9)
Ambient Temperature Range : 40°C ~ 150°C
N-9, 11 mm bimetal disc thermostat is designed to minimize its size, without compromising its performance. These thermostats are individually calibrated and tested to meet both thermal and electrical characteristics. The contacts are made of silver alloy for long life. The snap action of the bimetal disc provides high speed contact separation resulting in excellent life cycle characteristics at electrical loads, up to 8 Amps at 250VAC (100,000 cycles).


thermal overload protector suppliers, thermal overload protector wholesale


THERMAL OVERLOAD PROTECTOR

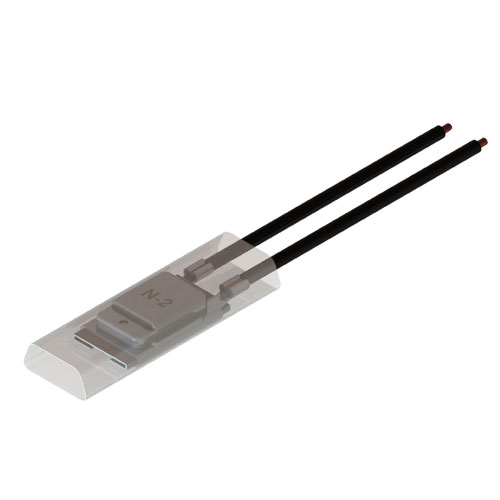

SN-2 (N-2) Thermal Overload Protector
SN-2 (N-2) Thermal Overload Protector
SN-2 (N-2) Thermal Overload Protector
Model : SN-2 (N-2)
Ambient Temperature Range : 50°C ~ 160°C
N-2 delivers the maximum protection in the smallest package at an excellent price. At the heart of the protector is a bimetal Snap–action disc. When the temperature of this disc reaches its pre-calibrated temperature it snaps open, resulting in an open circuit. This temperature is reached during a fault condition. After the circuit breaks, the system cools and the N-2 automatically resets, allowing power to be restored to the circuit.
Motor Protector
Motor Protector SN-1
Motor Protector SN-1
Model : SN-1
Ambient Temperature Range : 50°C ~ 160°C
SN-1 protector is economical and versatile protection device for any applications such as electric motor, battery pack and electrical windings.

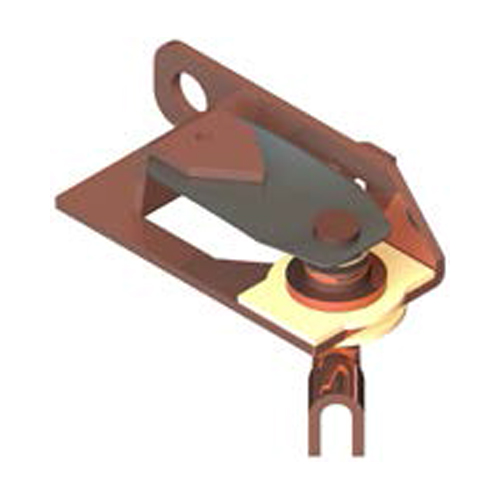

SN-25 DC Motor Protector
SN-25 DC Motor Protector
SN-25 DC Motor Protector
Model : SN-25
Ambient Temperature Range : 50°C ~ 160°C
The SN-25 Series is a high current DC motor protector, which delivers the benefit of complete protection in locked rotor and overload conditions in a robust integrated package. The SN-25 Series has been designed to offer protection for a wide range of voltage from 12-48 VDC. It is suitable for both intermittent and continuous rated motors. The SN-25 is physically small and has unique snap action bimetal disc, ensuring a positive make and break switching action for enhanced contact life.
