The Miniature series of bimetal temperature
controls offers proven reliability in a compact, versatile, cost-effective
design. The snap-action of the bimetal disc provides high-speed contact
separation resulting in excellent life cycle characteristics at electrical
loads up to 8 amps at 230VAC (100,000 cycles).The quality, reliability,
affordability, versatility of the Minatare Series makes it the thermostat of
choice for a wide variety of temperature control applications.
|
| Applications |
| - Electrical Heating Pads |
- Electrical Blankets |
| - Wax Heaters |
- Food Warmers |
| - Milk Bottle Warmers |
- Heat sink protection |
| - Other Small Appliances |
|
|
| Features |
- Snap action disc
- High thermal sensitivity
- Low cost
- Long contact life
- Compact, slim design
- Available with / without mounting bracket |

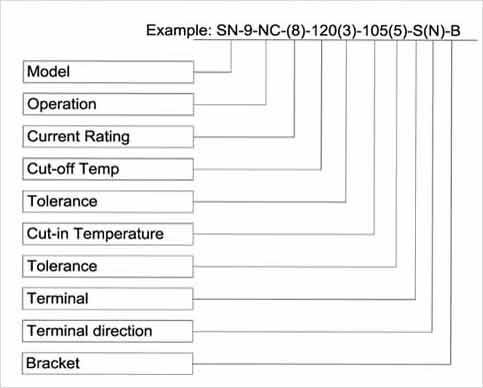

| Selection Code Chart |
 |

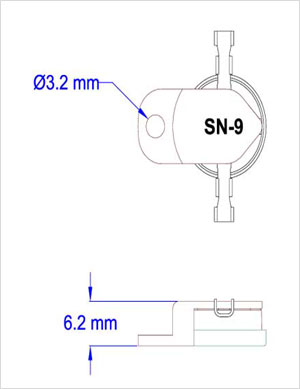

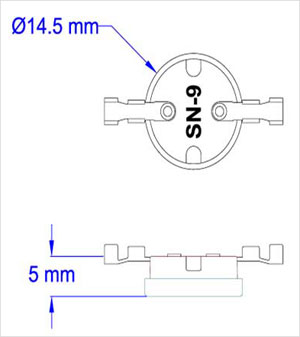

| Line Diagram |
 |
| Rated Voltage Rated Current |
230VAC 2A
to 8A |
| Operating
Cycles |
100,000
cycles |
| Maximum
Temperature |
160°C
|
| Operating
Range |
50°C
- 160°C |
| Setting
Tolerance |
+/- 5%
|
| Differential
|
10 - 15°C
|
| Terminals |
Crimp Type |
| Mounting
Bracket |
M0, B |
| NC |
NO |
| Open on
Rise |
Close on
Rise |
| Code |
Contact Rating |
Cycles |
| 2 2A |
230VAC |
1,00,000
|
| 8 8A |
230VAC |
1,00,000 |
| Temperature Range |
50°C to 100°C |
101°C to 165°C |
| Differential
|
10°C
|
15°C
|
| Top Temperature
Tolerance |
| Code |
3 |
5 |
| Tolerance
|
±3°C
|
±5°C
|
| Bottom Temperature
Tolerance |
| Temperature Range |
40°C to 150°C |
| Bottom Temperature
Tolerance |
| Code |
8 |
10 |
| Tolerance
|
±8°C
|
±10°C
|
| Code |
Cover |
| M0 |
B Standard
Bracket |
| Mounting Bracket |
 |
|
|
|
©
Utiliti Controls. All Rights Reserved (Terms
of Use)
Click
here to Download Datasheet
